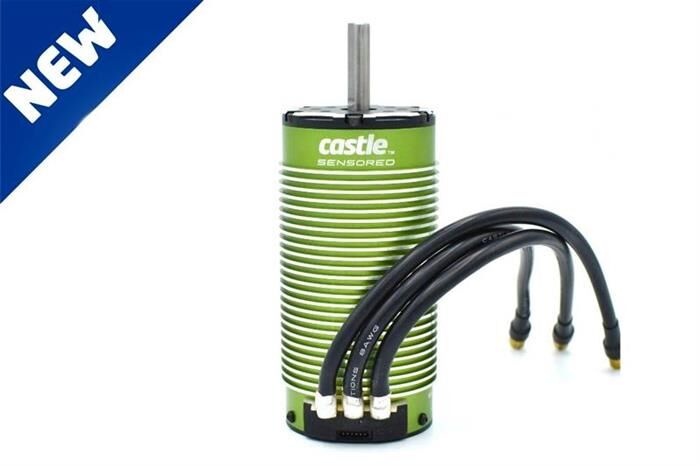

Castle Brushless Motor 2028 1100KV 4-Pole Sensored / CC-060-0087-00
Castle RC Modellbau Produkt
Motor Specs
Input Voltage Range:
12S max (8s max with XLX2)
Kv: 1100
Max. RPM: 45,000
Motor Size: Length: 4.4" (113.2mm)
Diameter: 2.2" (57mm)
Shaft Size:
Length: 30mm
Diameter: 8mm
Weight (w/wires): 44 oz. / 1.25kg
Mounting Hole Specifications: 4mm @ 30mm spacing
Cooling Fan: Available, but not included (011-0019-00)
Connectors: 8.0mm male bullets.
Items Needed for Operation: N/A
Product Use Statements:
Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
Application Guidelines: N/A
Max. Recommended Vehicle Weight:
Vehicles weighing less than 30lbs (13,6kg)
Tech Notes:
Running modes: Sensorless and Sensored
Water Resistant Design:
The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
Warum dieses Produkt?
Dieses Produkt eignet sich ideal für den RC-Modellbau – perfekt für Wartung, Reparatur, Tuning oder den Aufbau deines Modells.
Durch passende Kompatibilität und solide Verarbeitung ist es eine starke Wahl für Hobbyfahrer und ambitionierte Modellbauer.
Passt zu / Alternative zu
Ideal als Ersatz oder Upgrade für kompatible RC-modelle. Bitte auf Maße, Anschlüsse und Einsatzbereich achten.
