RC4WD Yota II Ultimate Scale Cast Axle (Front) / RC4ZA0080

RC4ZA0080
0610373642631
HOECO Ersatzteile / Zubehör
RC4WD

81,51 €

inkl. 19% USt.

Unverbindliche Preisempfehlung des Herstellers: 85,80 €

Artikel auf Lager

Für dieses Produkt erhalten Sie 1.63 digitale Bonusmünzen!

Stk

sparen durch Bonuspunkte

schnelle Bearbeitung

Kauf auf Rechnung

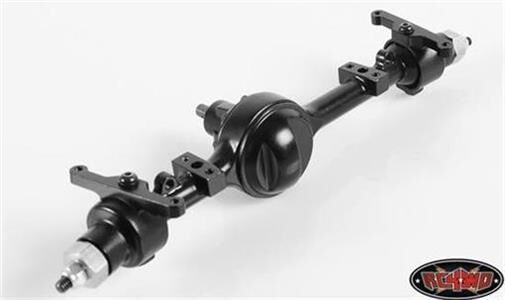

Yota II Ultimate Scale Cast Axle (Front)

The most Scale and complex Axle on the market just became even better! Extremely Scale to the smallest details, such as innovative round knuckles (just like the real thing), Removable offset third member and replaceable pumpkin.

Specifications:

Engineered and Manufactured by RC4WD
Designed for 1:10 Scale Truck
Die Cast light Weight Metal Housing
Hardened Steel Spool Gears
5mm Axle Output Shaft
Full Ball Bearings
Powder coated in black
Width: 180mm / 7.09inch
Gear Ratio: 2.67 : 1
12mm Steel Wheel Hex
Weight (Front): 166gram / 5.85oz

Shown installed on Gelande 2 (Not Included)

What's Included:

1x Yota II Ultimate Scale Cast Axle (Front)

Other Yota II Axles:

Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)
Yota II Ultimate Scale Cast Axle (Center Front) (Z-A0086)

Replacement Parts:

Axle Ring & Pinion Gears (Z-S0027)

Front Replacement Case Housing (Z-A0082)

Replacement Third Member (Z-S0813)
Replacement Diff Cover (Z-S0812)

Replacement Cast Knuckles for Yota II Axle (Z-S0811)

Replacement Hardware (Z-S0868)
Yota Front Steel Axle Shaft (Z-S0060)
Socket Head Cap Screws M2 X 6mm (10) (Z-S0611)
Bearing Kit for Yota Ultimate Scale Front Axle (Z-S0080)

Optional Parts:

XVD Axle for Ultimate Scale Yota II (Z-S0823)

Steering Link Set (Z-S0938)

Optional Diff Cover (Z-S0907)
Helical Gear Set (Z-G0059)
Ultimate Axle 4 Link Mount (Z-S0133)
Axle U Bolt Kit (Z-S0304)
RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
5mm x 9mm x 0.3mm Axle Shims (Z-S1559)
RC4WD Ballistic Fabrications Diff Cover for Yota II Axle (Z-S1605)
RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
Knuckle Bushings for Yota II Axle (8) (Z-S1784)
RC4WD Baer Brake System Rotor Set (1.7"/1.55") (Z-S1962)
RC4WD Baer Brake System Rotor Set (2.2"/1.9") (Z-S1963)
RC4WD Baer Brake System Caliper Set (2.2"/1.9") (Z-S2057)
RC4WD Baer Brake System Caliper Set (1.7"/1.55") (Z-S2058)
Yota II Axle Mounts for Baer Brake Systems Rotors and Calipers-Front (Z-S1968)
3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
Leaf Under Mounts for Yota 2 / K44 Axles (Z-S2135)

Notes:

While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
Yota II Axles will fit Trail Finder 2. With the front Axle you will need the steering link set. (Z-S0938)

Artikelgewicht:	0,24 kg
